WELCOME TO MULTITECH ENGINEERS

We at MULTITECH – an Organization managed by a dedicated team of professionals & technocrats having our own design & drawing department, engaged in the manufacture of Rotary Vacuum Drum Filters and Disc Filters etc. for Filtration, Clarification and Solid–liquid separation since 1984. There are more than 100 installations of our Drum Filters & Clarifiers. We have specialized and gained rich experience in this field. Our works at Sahibabad (Ghaziabad) is well equipped having qualified & skilled manpower to attend any volume of work qualitatively.

KNOW MORE ABOUT US

MULTITECH Sugar Industry Products

Read more

MULTITECH Rotary screen

Rotary screen offers, Continuous juice screening effected on a wedge type screen fitted on a cylindrical drum mounted in horizontal position with appropriate slope toward non-drive end.. The dynamic movement of screen allows utilization of smaller size wedge bar opening for removal of even the smallest bagacilloparticle from mill juice. The diameter, the length of the screen, the speed of the rotating screen and its inclination are such designed that the projectile formed by the solids remaining on the screen facilitates complete drainage of juice. The direction of rotation of screen is such decided that maximum juice is removed in the first 30% section of the screen and the balance de-watering takes place in the remaining 70% of screening area. As a standard accessory, special design feature of cleaning the screen periodically by automatic application of hot water through flat cone nozzle ensures clean screen surface throughout the operation period
Read more

MULTITECH Cane Mud Filter

More than 100 installations in india & Overseas Rotary Vacuum Filter with added Advantages MULTITECH Rotary Vacuum Drum Filter with Anti-run Back Design has a rugged construction and is specially designed for the sugar industry. The filter drum of stainless stell construction is sugar industry. The filter drum of stainless steel construction is equipped with stainless steel deckings/ polypropylene open lattice grids, floating segemented scrapper, heavy dut agitator and efficient lubrication system. The automatic value can be adjusted to create higher vacuum in the washing zone for discharge of dry cake. Segmented floating scrapper is provided for proper cake removal with minimum screen wear. The filters are manufactured in 2.44 m (8 feet) dia. to 4.27 M(14 feet) dia. with lengths to suit customer requirements. Built-in advantages <ul> <li>Lower poll loss , increased sugar recovery.</li> <li>Efficient cake wasing reduces wash water requirement.</li> <li>Quick filter cycle for reduced inversion of sugar and increased throughput.</li> <li>Automatic continuous operation and cleaner filter station</li> <li>Odourless and disposable filter cake.</li> <li>Uniform filter cake enabling reliable sampling.</li> <li>properly selected accessories & increases over all efficiency of the filter station.</li> </ul>
Read more

MULTITECH Cane Juice Clarifier

Cane Juice clarifier with in-built features The new improved design of MULTITECH Cane Juice Clarifier settles juice at a faster rate and has sufficient volume to handle refractory juices, achieving maximum juice clarity and optimum density of underflow. The Drive head is ruggedly designed and is maintenance free. The Clarifiers are manufactured in different sizes to suit specific requirement from 4.27M (14 feet) to 12.2M (40 feet) diameter, capacity ranging from 800 HL to 8000 HL. Salient Features Each Chamber is 1.5M (5 feet) high convenient for cleaning and maintenance. Improved design for clearer & brighter juice with facility for operating Clarifier partially full to accommodate plant capacity at all levels of crushing. Effective mud seal arrangement to prevent mixing of settled mud with clear juice. Complete auto dosing systme for flocculants. Provission for variable speed possible. The Clarifier can be supplied with 5,4 or 3 chambers or 4 chambers clarifier with independen operation from 4 the Chamber and 3rd Chamber as well.
Read more

MULTITECH Drive Heads

MULTITECH Drive Heads of rugged construction with least maintenance are suitable for Cane Juice Clarifiers up to 42 feet diameter. Outside diameter of the Drive Gears ranging from 700 mm to 2000 mm suitable for Center Tube 500 mm to 1200 mm O.D. These Drive Heads are suitable for 3-4 and 5 chambers Clarifiers. Hardened Chrome Steel Balls and High Grade Sprign Steel Races are used for smooth and trouble free runing of the Drive Gears with better life. The teeth of the Drive Gears are machined for positive drive. Worm Wheel and Gear Housing are of Graded Cast Iron, precisely machined for trouble free performance. Worm of EN -19, Drive Shaft of EN-9 / S.S -410 construction & Gun Metal Bushes are of best quality. The Bearings used are only genuine bearnings of Reputed Brands. All Our Equipments are custom designed & tailored to meet individual needs economically.

MULTITECH Coal Processing Equipments

Read more

MULTITECH Rotary Vacuum Drum Filter with belt discharge

Rotary Vacuum Drum Filter with belt discharge has been developed in association with Institute of Mining & Fuel Research(erstwhile C.F.R.) for dewatering of coal slurry. Proven benefits include superior belt handling and tracking, more compact discharge, dryer cakes, longer belt life, minimum operative attention, maximum capacity, maximum filter area utilization, minimum maintenance downtime and cleaner operation. Filter areas range from 20 to 70 Sqm and coal slurry handling capacity from 7 to 25 MT per hour. The Filter drum is equipped with stainless steel dovetail division strips, polypropylene drainage deckings , covered with a synthetic media belt for uniform and faster filtration. Oscillating type agitator provides homogenous slury in the filter trough. The well designed Automatic Rotary Valve controlls the pickup, dewatering and discharge zones in an efficient manner.The low moisture cake is discharged by the belt discharge mechanism.
Read more

MULTITECH Coal Slurry Washery

TECHNICAL SPECS FOR COAL SLURRY WASHERY OF 10 MT/hr FEED CAPACITY OUR SCOPE (1) 8 Nos. Flotation Cells ( Two batteries of 4 cells in each Battery ) (2) 1 No. Conditioner for preparing highly dense of coal dust, water and emulsifier, (3) 2 Sets. Reagent Emulsifier Tanks with agitator / stirrer for Polyelectrolyte and Diesel item
Read more

MULTITECH COAL WASHERY WITH HYDRO CYCLONES

The Equipment has been developed for coking coal washing. The process of washing requires no medium except water.It has a great advantage as it requires minimum manpower for operation, low maintenance cost. Moreover the water is recycled during operation and it requires only make up water and thus involves lesser pollution.
Read more

MULTITECH JAW CRUSHER
Read more

MULTITECH HAMMER MILL CRUSHER
Read more

MULTITECH MOVING HAMMER

Multitech moving Hammer are designed for efficient crushing to produce uniform size material. Slow positive action produces product with minimum fines. Application Ideal for crushing Coal, Coke etc.
Read more

MULTITECH RECIPROCATING FEEDER

We manufacture the equipment of different sizes for various capacities. The body is fabricated from Mild Steel, fully balanced and robust in construction. All moving parts are provided with antifriction bearings. The reciprocating motion is mechanically achieved and so it is always positive. A provision is kept for adjustment of stroke length.
Read more

MULTITECH GRANULATOR

The machine has a heavy metal box in which a rotor with two types of breaking rings rotates with a moderate speed and a breaker plate is fixed on the robust body. It has a Screening chamber for required size production. All breaking and screening parts are made of high Manganese Steel for strength and longer life. These are easily replaceable. There is provision of gap adjustment which helps to adjust product size as required. The rotor is balanced with V Pulley and Fly Wheel is rigidly fixed and rotated with Heavy Duty Spherical Roller Bearings for trouble free production.

View All Coal Processing Equipments

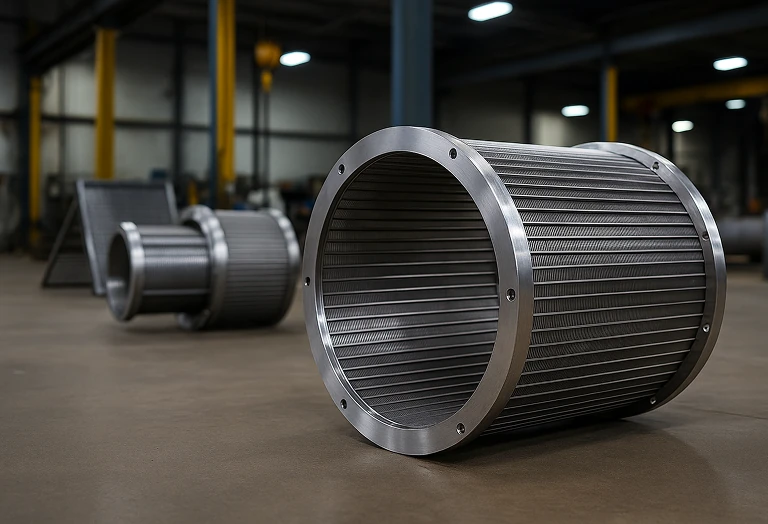

Vectra Wedge Wire Screens

Read more

Rotary Drum Screens

Rotary Drum Screens allow for large flow to be pumped over the wedge wire screen inside, which separates the liquids and solids as drum rotates.
Read more

Static Inclined Hill Screens

APPLICATIONS IN PAPER AND PULP INDUSTRIES
Read more

Pressure Screen Baskets

PPLICATIONS IN PAPER AND PULP INDUSTRIES
Read more

Centrifuge Baskets

APPLICATIONS IN MINING & MINERAL PROCESSING INDUSTRY
Read more

Sieve Bends

APPLICATIONS IN MINING & MINERAL PROCESSING INDUSTRY
Read more

Flat Panels

APPLICATIONS IN MINING & MINERAL PROCESSING INDUSTRY
Read more

Resin Traps

APPLICATIONS IN SUGAR INDUSTRY
Read more

Header and Lateral Systems

APPLICATIONS IN SUGAR INDUSTRY
Read more

Nozzles/Stainers

APPLICATIONS IN SUGAR INDUSTRY
Read more

Stationery Wedge Wire Screens

APPLICATIONS IN SUGAR INDUSTRY
Read more

Water Well Screens

APPLICATIONS IN WATER AND WASTEWATER TREATMENT
Read more

Step Screens Vectra SS

APPLICATIONS IN WATER AND WASTEWATER TREATMENT

View All Vectra Wedge Wire Screens Products

Dedicated team

MULTITECH is dedicated team of professionals & technocrats having our own design & drawing department, engaged in the manufacturing since 1984

Quality Materials

Whether it is raw materials or fully finished products, we only trust quality materials for our production.

Timely Delivery

We strongly believe that time is money and thus, never delay any delivery for our clients. Trust us to follow every deadline, always!
